Gyrocopter rotor – The history of gyrocopter rotors dates back to the early 20th century, with the invention of the autogyro by Spanish engineer Juan de la Cierva. De la Cierva’s autogyro was the first successful rotorcraft, and it paved the way for the development of modern gyrocopters.

The autogyro’s rotor system was a breakthrough in aviation technology, as it allowed for vertical takeoff and landing, as well as the ability to hover in place. Over the years, advancements in rotor design and technology have led to the development of more efficient and reliable gyrocopter rotors, making them a popular choice for recreational and commercial aviation.

In the 1930s, Igor Bensen, an aeronautical engineer, further developed the autogyro concept and introduced the Bensen Gyrocopter, which featured a simplified rotor system that was easier to maintain and operate. This innovation made gyrocopters more accessible to a wider range of pilots and enthusiasts.

Since then, gyrocopter rotors have continued to evolve, with improvements in materials, aerodynamics, and control systems. Today, gyrocopters are used for a variety of purposes, including recreational flying, aerial photography, agricultural spraying, and search and rescue operations.

The history of gyrocopter rotors is a testament to the ingenuity and innovation of aviation pioneers, and their contributions have paved the way for the modern rotorcraft industry.

Gyrocopter Rotors

How Gyrocopter Rotors Work

Gyrocopter rotors work on the principle of autorotation, which is the ability of a rotor to spin freely and generate lift without the need for engine power. This unique feature allows gyrocopters to achieve vertical takeoff and landing, as well as the ability to hover in place.

The rotor system consists of a main rotor and a tail rotor, which work together to provide stability and control during flight. The main rotor is responsible for generating lift, while the tail rotor helps to counteract the torque produced by the main rotor.

This dual-rotor configuration allows gyrocopters to maneuver with precision and agility, making them ideal for a wide range of applications.

The main rotor of a gyrocopter is typically made up of two or more blades that are attached to a hub and driven by the engine through a transmission system. The blades are designed to produce lift by creating a pressure differential between the upper and lower surfaces as they rotate through the air.

This lift force allows the gyrocopter to become airborne and maintain altitude during flight. The tail rotor, on the other hand, is a smaller rotor located at the rear of the aircraft, and its primary function is to counteract the torque produced by the main rotor.

By adjusting the pitch of the tail rotor blades, pilots can control the yaw of the gyrocopter and maintain stable flight. Overall, gyrocopter rotors are a marvel of engineering and aerodynamics, and their unique design allows for safe and efficient flight operations.

  • Unmatched Communication Clarity: The AirClassics HS-1A aviation headset features a cutting-edge noise-canceling flex-boo…
  • Designed for extended wear, the HS-1A pilot headset features an adjustable headband with thumb screws for a personalized…
  • Built to endure the rigors of aviation, the HS-1A headset includes multi-strand wiring and corrosion-resistant gold-plat…

The Different Types of Gyrocopter Rotors

There are several different types of gyrocopter rotors, each with its own unique design and characteristics. The most common type of rotor used in gyrocopters is the semi-rigid rotor system, which features a flexible hub that allows for some movement of the rotor blades.

This design provides a good balance between stability and maneuverability, making it suitable for a wide range of flying conditions. Another type of rotor system is the fully articulated rotor, which uses a complex hinge mechanism to allow for greater freedom of movement in the rotor blades.

This design is often found in larger gyrocopters and provides enhanced performance and control.

In addition to semi-rigid and fully articulated rotors, there are also rigid rotor systems that use a fixed hub to connect the rotor blades. This design offers superior stability and precision, making it ideal for high-performance gyrocopters used in professional aviation applications.

Another type of rotor system is the teetering rotor, which features a simple hinge mechanism that allows the rotor blades to teeter back and forth in response to changes in flight conditions.

This design is often used in smaller, lightweight gyrocopters and provides good maneuverability at lower speeds. Overall, the different types of gyrocopter rotors offer a range of options for pilots and enthusiasts, allowing them to choose the best configuration for their specific needs and preferences.

Gyrocopter Rotors

The Importance of Rotor Maintenance

Rotor maintenance is crucial for ensuring the safe and reliable operation of gyrocopters. The rotor system is one of the most critical components of the aircraft, as it is responsible for generating lift and controlling flight maneuvers.

Regular maintenance and inspections are necessary to detect any signs of wear or damage that could compromise the integrity of the rotor system. This includes checking for cracks or corrosion in the rotor blades, inspecting the hub and transmission components for wear, and ensuring that all control linkages are properly lubricated and adjusted.

Additionally, proper balancing of the rotor blades is essential for smooth and vibration-free operation.

In addition to regular inspections, gyrocopter owners should follow manufacturer-recommended maintenance schedules to ensure that all components of the rotor system are in good working condition. This may include periodic replacement of bearings, seals, and other wear items, as well as adjustments to blade pitch and tracking.

Proper storage and handling of rotor blades is also important to prevent damage from exposure to environmental factors such as sunlight, moisture, or extreme temperatures. By following these maintenance practices, gyrocopter owners can ensure that their rotor systems remain safe and reliable for years to come.

  • Superior Quiet – Zulu 3 delivers advanced active noise reduction (ANR) performance over a deep, broad range of low-frequ…
  • Low Profile Comfort – Weighing just 14.6 ounces (including ear seals and mic boom), Zulu 3 has a low-profile, stainless-…
  • Durability and Longevity – Made almost entirely of stainless steel and magnesium — with durable cables built around a Ke…

Advantages and Disadvantages of Gyrocopter Rotors

Gyrocopter rotors offer several advantages over traditional fixed-wing aircraft, making them an attractive option for pilots and aviation enthusiasts. One of the main advantages of gyrocopter rotors is their ability to achieve vertical takeoff and landing, as well as hover in place.

This makes them well-suited for operations in confined spaces or areas with limited runway access. Additionally, gyrocopters have a relatively low stall speed compared to fixed-wing aircraft, allowing them to operate at slower speeds and in tighter flight patterns.

This makes them ideal for applications such as aerial photography, agricultural spraying, and search and rescue operations. However, gyrocopter rotors also have some disadvantages that should be considered by potential owners and operators.

One of the main drawbacks is their limited forward speed compared to fixed-wing aircraft. While gyrocopters are capable of achieving respectable cruising speeds, they are generally slower than traditional airplanes, which may not be suitable for long-distance travel or time-sensitive missions.

Additionally, gyrocopters require more frequent maintenance and inspections due to their complex rotor systems, which can result in higher operating costs compared to fixed-wing aircraft. Despite these drawbacks, many pilots find that the unique capabilities and versatility of gyrocopter rotors outweigh any potential disadvantages.

Gyrocopter Rotors

Innovations in Gyrocopter Rotor Technology

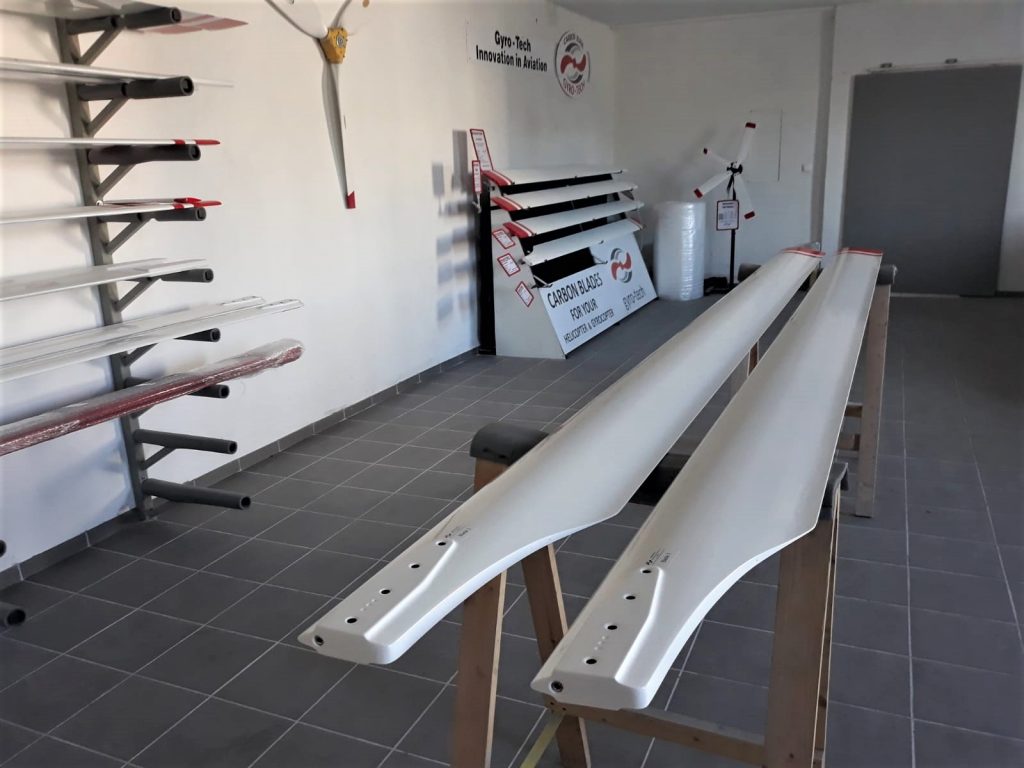

In recent years, there have been several notable innovations in gyrocopter rotor technology that have improved performance, safety, and efficiency. One such innovation is the development of composite materials for rotor blades, which offer significant weight savings and improved durability compared to traditional metal blades.

Composite materials also provide better resistance to fatigue and corrosion, resulting in longer service life and reduced maintenance requirements. Additionally, advancements in aerodynamic design have led to more efficient rotor blade shapes that produce higher lift-to-drag ratios and reduced noise levels during flight.

Another important innovation in gyrocopter rotor technology is the integration of electronic fly-by-wire control systems, which provide enhanced stability and control during flight maneuvers. These systems use sensors and computer algorithms to automatically adjust rotor blade pitch and control inputs based on pilot commands and flight conditions.

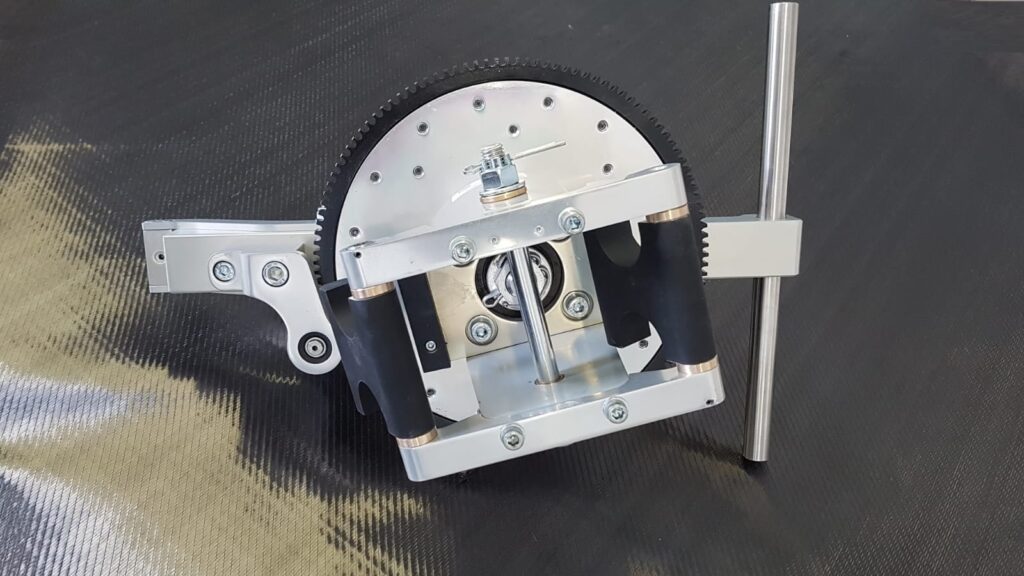

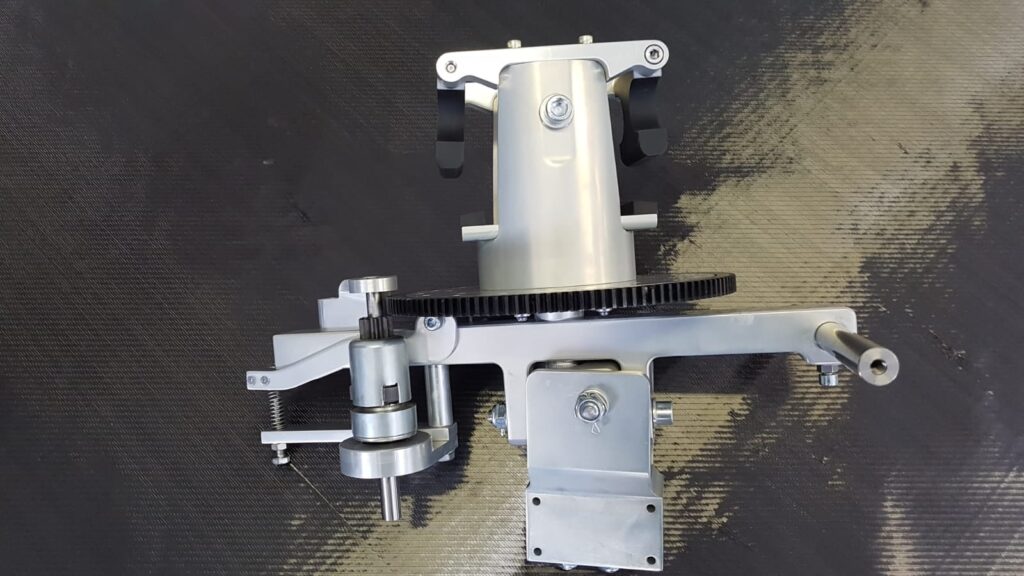

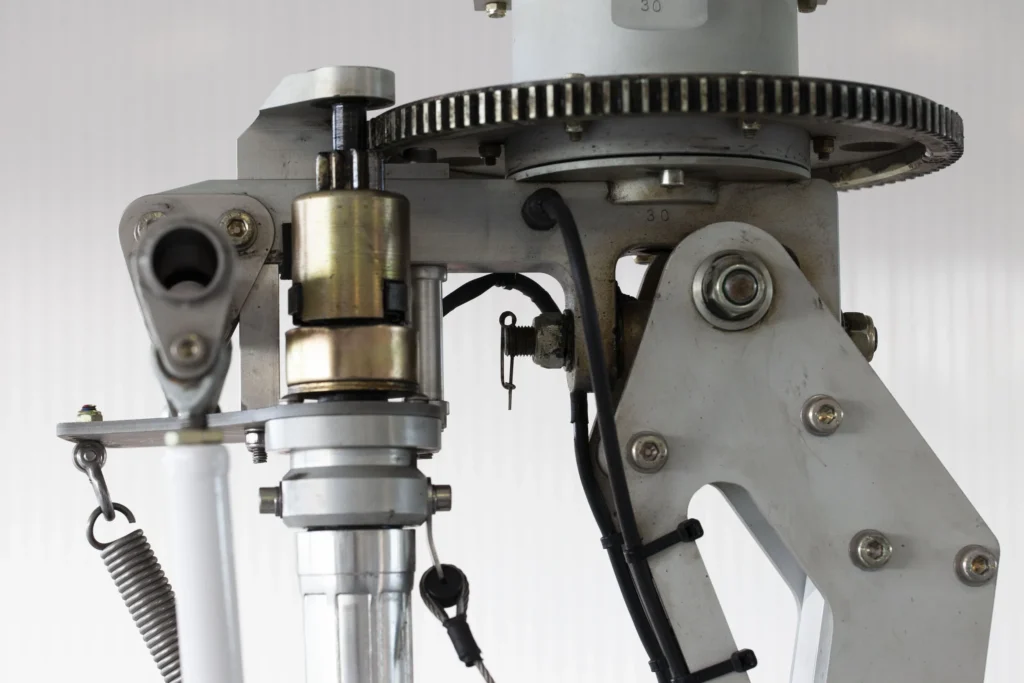

This results in smoother handling characteristics and improved safety margins during critical flight phases such as takeoff, landing, and low-speed operations. Additionally, advancements in rotor head design have led to more compact and lightweight components that reduce overall weight and improve performance.

Overall, these innovations in gyrocopter rotor technology have contributed to safer and more efficient flight operations for pilots and operators around the world. As technology continues to advance, we can expect further improvements in rotor design, materials, and control systems that will further enhance the capabilities of gyrocopters for a wide range of applications.

Gyrocopter Rotors

Conclusion

The future of gyrocopter rotors looks promising as advancements in technology continue to drive innovation in aircraft design and performance. One area of focus for future development is improving efficiency through advanced propulsion systems such as electric motors or hybrid powertrains.

These systems offer reduced emissions and operating costs compared to traditional internal combustion engines while providing comparable performance characteristics. Additionally, advancements in energy storage technology will enable longer endurance flights and increased range for gyrocopters used in commercial applications such as aerial surveying or transportation.

Another area of interest for future gyrocopter rotor development is autonomous flight capabilities that leverage artificial intelligence and sensor fusion technologies. These systems will enable unmanned gyrocopters to perform tasks such as surveillance, inspection, or cargo delivery with minimal human intervention.

This will open up new opportunities for applications in industries such as agriculture, infrastructure monitoring, and emergency response where autonomous aerial platforms can provide valuable data collection capabilities.

Overall, the future of gyrocopter rotors holds great potential for continued advancements in performance, safety, and versatility. As technology continues to evolve, we can expect to see further improvements in efficiency, autonomy, and environmental sustainability that will make gyrocopters an even more attractive option for a wide range of aviation applications.

With ongoing research and development efforts from industry leaders and academic institutions around the world, we can look forward to exciting new innovations that will shape the future of gyrocopter rotors for years to come.
